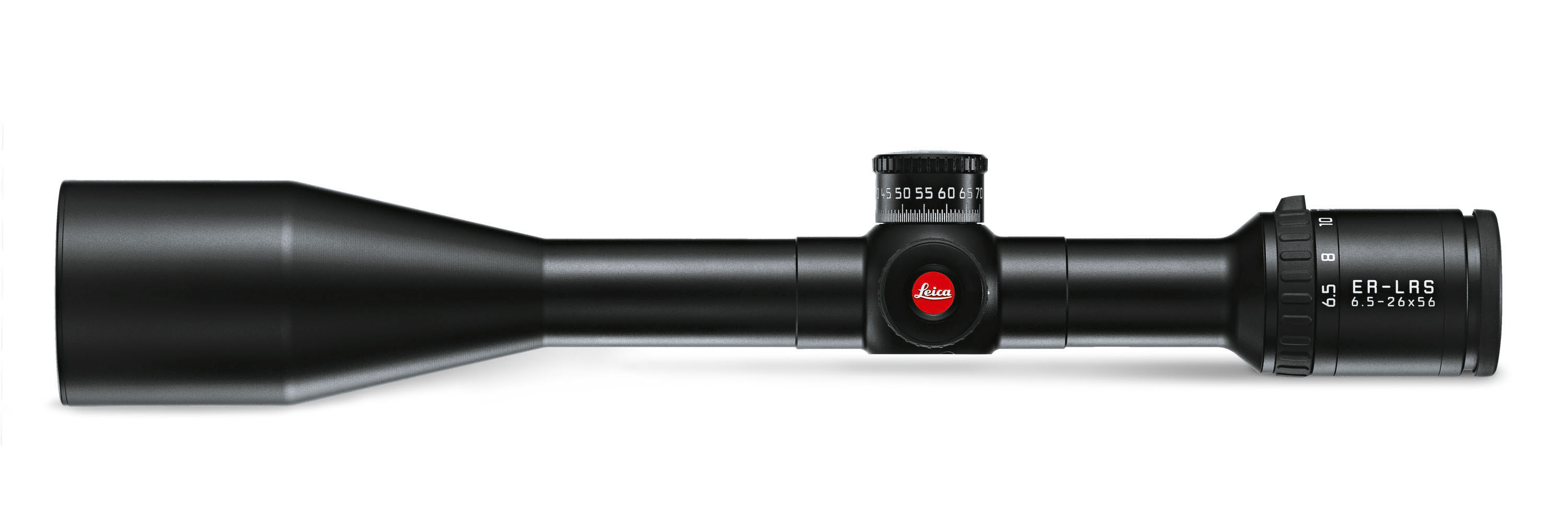

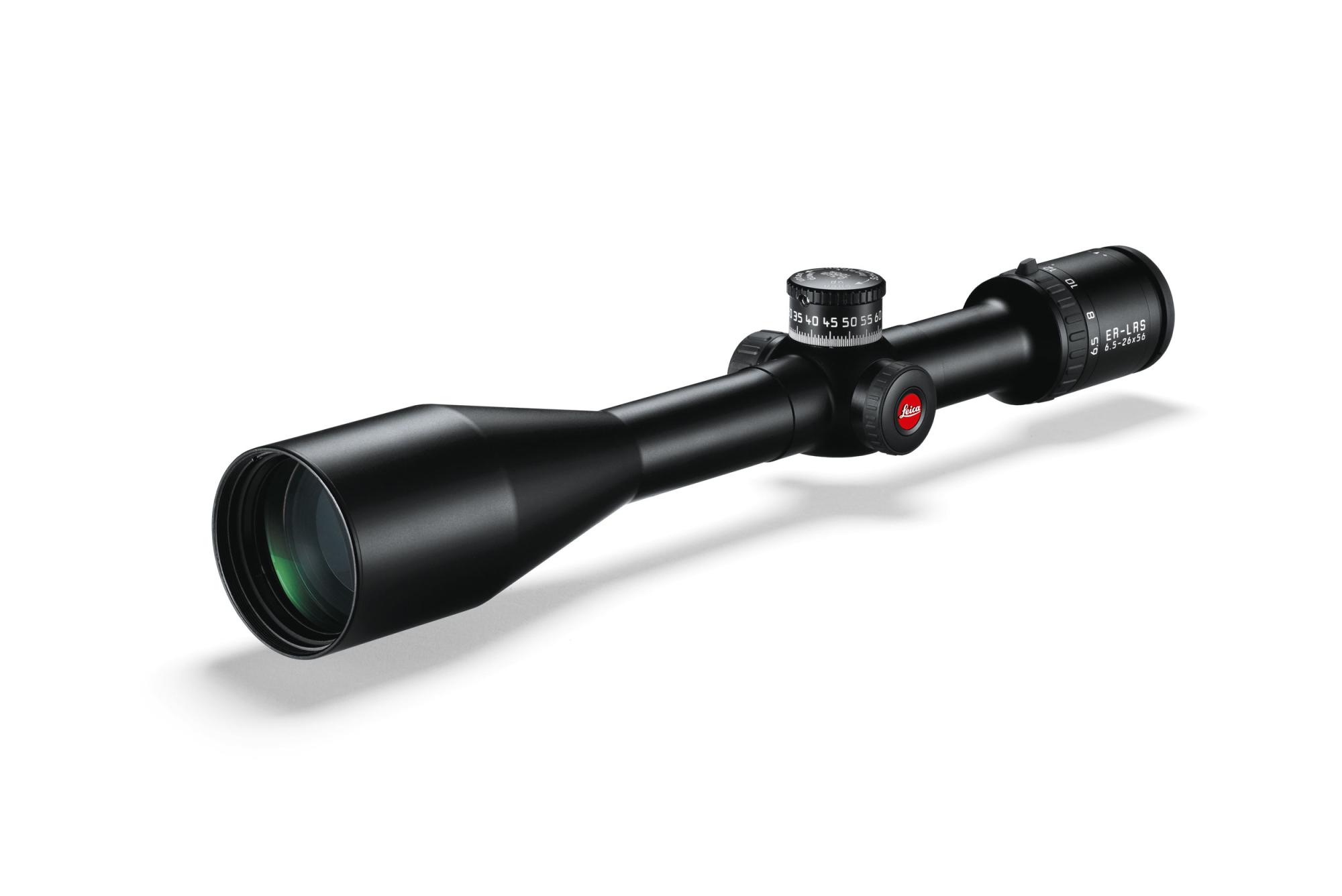

Leica ER 6.5-26x56 LRS L-4a BDC Sport

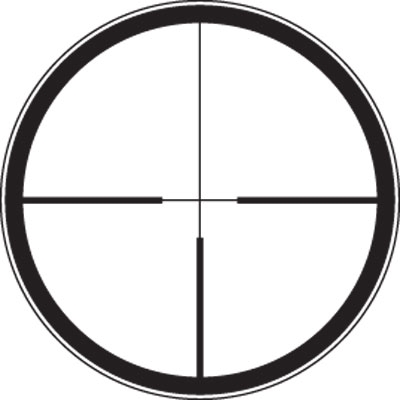

Designed specifically for long range shooting, the new ER 6.5-26 x 56 LRS gives you exceptionally high levels of magnification, light transmission and contrast. In particular, minimal colour-fringing was a requirement for the development of the optics. The result: best optical quality for maximum contrast even for magnifications on long distances. Thanks to its finely tuned elevation tracking, users can achieve absolute precision when sighting in and setting the planned point of impact - especially on long distances. What's more, the ER 6.5-26 x 56 LRS has a large eye relief, making it safer for use with calibres required for longer-range shots. The design is slim, classic and has a large mount. The proven mechanics mean maximum safety for you at every shot - on the terrain or during a competition. A new, special "Long Range" reticle with a reduced crosshair thickness ensure optimal target detectability, thus enabling very relaxed and sustainable observation.

Technical data

Front lens diameter   -   56 mm
Magnification   -   6.5 –26x
Zoom   -   4x
Field of view at max.
magnification (m/100 m)   -   4 ft/1.45 m
Field of view at min.
magnification (m/100 m)   -   18 ft/5.5 m
Eye relief   -   3.9 in/100 mm
Exit pupil   -   0.08–0.34 in/2.15–8.55 mm
Parallax   -   adjustable, 50 m to infinity
Diopter compensation   -   –4/+3 dpt
Coating   -   AquaDura® lens coating
Transmission   -   TD/ TN ≥ 90 %
Central tube diameter   -   30 mm
Impact point correction   -   1 click = 0.5 cm /100 m
120x70 cm
Front lens filter thread   -   ---
Length   -   14.8 in/375 mm
Weight   -   without track: 26.5 oz/750 g
Waterproof   -   waterproof to 13.1 ft/4 m
nitrogen-filled
Reticle illumination   -   No
Automatic switch-off   -   3 min, ± 70°
Automatic switch-on    -   yes, activated by position
and/or movement
